Click the Exhibit button.

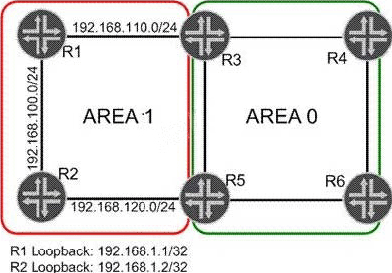

Area 1 has three network links. You need to summarize the network addresses in Area 1 so that Area 0 sees one route representing the network links. A route to each loopback address must still be visible in Area 0.

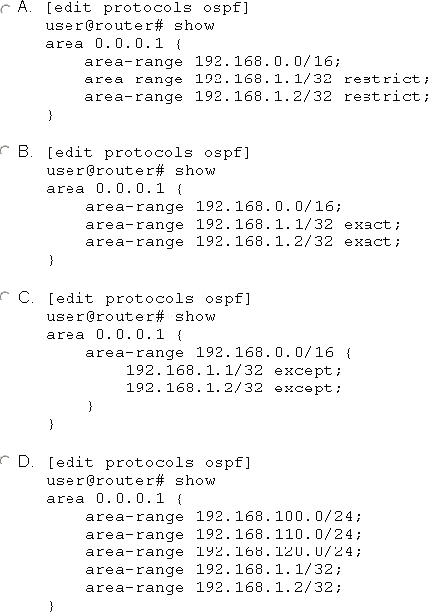

Which configuration sample on R3 and R5 will complete this task?
A . Option A
B . Option B
C . Option C
D . Option D
Answer: B
